DATA SHEET
| fieldSENSE 2.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Frequency range of operation |
50 MHz – 6 GHz |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency response |
Shaped (Occupational/Controlled)* − ICNIRP (1998) − FCC [NCRP] OET65 (1997) − Canada Safety Code 6 (2015) |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Sensor polarisation |
Isotropic |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Isotropy |
± 3 dB |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Probes |
E-field & H-field ( 3 orthogonal probes each) |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Result type |
Time-averaged RMS power density |
|||||||||||||||||||||||||||||||||||||||||||||||||
|
Frequency response table |
||||||
|
Frequency |
ICNIRP (2020) |
FCC/NCRP |
Canada SC6 (2015) |
|||
|
50 MHz — 80 MHz |
1.1 ± 3.6 dB |
1.1 ± 3.6 dB |
-0.8 ± 3.6 dB |
|||
|
80 MHz — 500 MHz |
2.8 ± 2.5 dB |
3 ± 2.6 dB |
1.8 ± 3.2 dB |
|||
|
500 MHz — 1 GHz |
1.4 ± 3.5 dB |
2.7 ± 3.5 dB |
1 ± 3.9 dB |
|||
|
1 GHz — 2 GHz |
0.5 ± 4.4 dB |
1.7 ± 4.3 dB |
-1.2 ± 4.5 dB |
|||
|
2 GHz – 6 GHz |
1.1 ± 3.4 dB |
1.1 ± 3.4 dB |
-0.6 ± 3.8 dB |
|||
|
Calibration interval |
2 yearly |
|
Level indicators 7 LED’s |
Percentage of Exposure Reference level 2%, 5%, 10%, 25%, 50%, 100%, 200% or more |
|
Audio Alarm Indicators 50% (5th LED) 100% (6th LED) 200% (7th LED) |
0.75 Hz beep 1.5 Hz beep 3 Hz beep |
|
Operation |
Single button operation |
|
CW damage levels |
26 dB above Standard | 40 000% of Standard |
|
Data logging |
E , H and Maximum & audio notes |
|
PC connection |
Micro USB connection, software available on website |
|
Fail detection system |
3-axis accelerometer |
|
Battery life |
6-12 months on average usage |
|
Low battery warning |
Flashing LED |
|
Battery type |
2 x 1.5 V size AAA (LR03) alkaline |
|

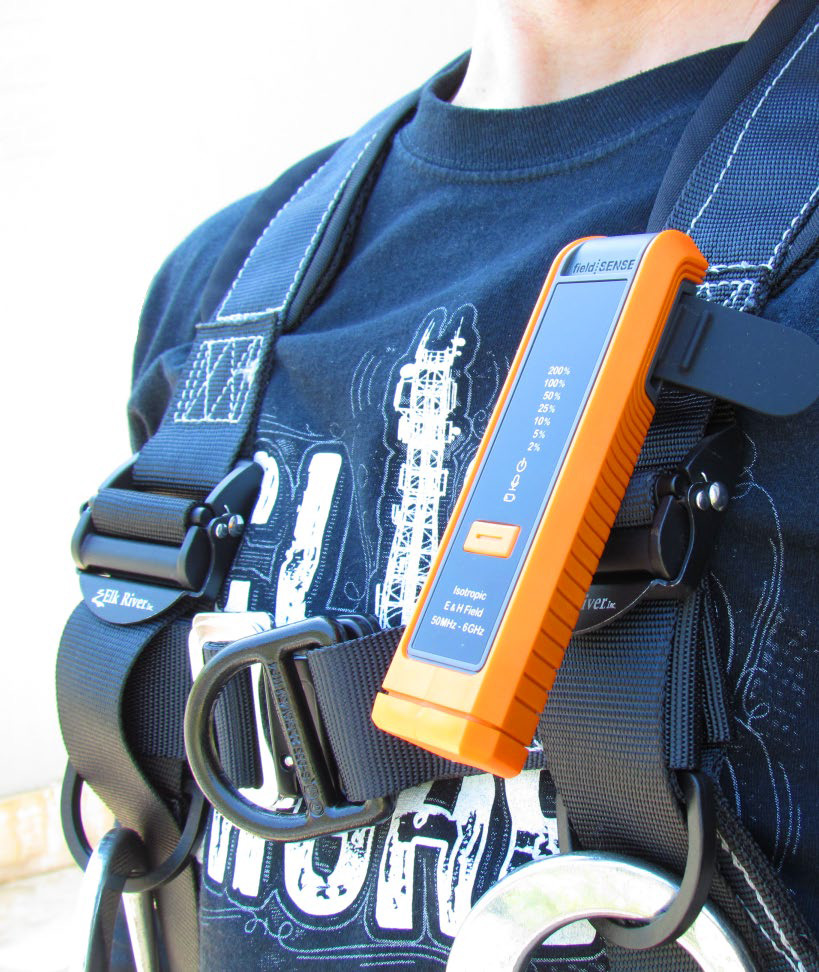

Mounting options |
Handheld (with wrist strap on lanyard) Harness (with supplied harness strap) Tripod socket (remote monitoring) |
|
Included |
Rugged reusable zipper case Wrist strap (adjustable) Harness strap (adjustable) User manual & calibration certificate 2x AAA batteries & 2x spare AAA batteries |
|
Dimensions |
146 x 26 x 42 mm | 5.7 x 1 x 1.7 inches |
|
Weight (incl. batteries) |
115 g | 0.25 lb |
|
Temperature |
Operating: -20 °C – 50 °C |
|
Additional environmental testing |
Impact (IK08), Ingress (IP64), Vibration, Drop, Humidity |
|
Certification |
CE, UKCA |
* Minor differences in exposure standards introduce small variations in measurement uncertainty at specific frequencies. Specific details
can be supplied and are listed in the user manual.
